MMM Restoration - the Uni-Tred by Claude Hanssens

Disassembled Unitred "Guts"

Submitted by Claude Hanssens, Brussels, Belgium (non English) on 2020.01.13

A few weeks ago, I bought a Uni-Tred + Space Bubble package on E-Bay.

Unfortunately, the Uni-Tred was not functioning: when switched on, it produced a horrible creepy sound and refuse to go forward. I decided to fix it.

By design, the Uni-Tred is fully sealed by glue: no screw. I carefully open it using a combination of tools: stiletto with various blades, screwdriver,…

I managed to separate most of the seals, but I also had to cut through some of them. Because most of the seals are under the track, when rebuilt, it will be invisible.

The Uni-Tred gear

As in the Space Crawler, Mattel put in the Uni-Tred an advanced gear system.

When advancing on a horizontal surface, the Uni-Tred goes full speed. On steep slope, it automatically switches to a lower speed with greater power.

Here is a description of the functioning of the gear.

Here above you see a picture of the engine and the gear system.

3D drawing of the gear

Basic function:

1. Engine (grey + white wheel) turns the purple wheel;
2. The purple wheel turns the tallow wheel;
3. The yellow wheel turns the orange wheel (large wheel).
   Till now, this reduce the speed of the engine.
4. The orange wheel turns the light green and blue wheels.
5. The blue wheel turns (loose connection) the light green wheel.
6. The light green wheel is connected to dark green wheels that turn the track.

The orange wheel has 3 parts:

1. Large connected to the yellow wheel
2. Medium (n° 1) connected to the light green wheel (n° 3)
3. Small (n° 2) connected to the blue wheel (n° 4).

Medium orange wheel (n° 1) has 24 teeth. Light green wheel (n° 3) has 18 teeth. One rotation of the orange wheel produce 24/18 = one and a third rotation for the light green wheel (n° 3).



Small orange wheel (n° 2) has 10 teeth. Blue wheel (n° 4) has 32 teeth. One rotation of the orange wheel produce 10/32 = a third of a rotation for the blue wheel (n° 4).



A spring pushes the blue and light green wheels back in place.



On horizontal surface:



On horizontal surface, the light green wheel turns faster (1+1/3) than the blue wheel. A loose connection (a differential made of a light slope on the rotation direction) makes “jump” the blue wheel. It produces the sound “Tac Tac Tac”. The Uni-Tred goes full speed.



On slope:



The track “brakes” the dark green wheels. The result is that the light green wheel is pushed away from the left dark green wheel. The light green is disconnected from the orange wheel, as show manually here under.

Now the orange wheel (small part N° 2) turns only the blue wheel.



The blue wheel (n° 4) turns the light green wheel (n° 3). The differential has a connection in the direction of rotation. The Uni-Tred slows down but at full power.



I made 2 videos with each function.



Matt Mason – Filling gaps

There is sometimes needed to fill gaps in your Matt mason stuff: melt down by contact with a soft plastic, big scratches, or to fill gaps when you opened your Uni-tred.



Modelers use the following tip: You can use the small parts of your Uni-Tred, broken when you opened it.



You can also use sprue of model kits (ask a modeler friend). You can find them in various colors.



Styrene Model Kit Sprue

1. Cut the plastic in small parts (a few millimeter long).
2. Put the parts in a glass jar with of top.
3. Add Cellulose thinner (to almost cover the plastic).
4. Close and wait.


The plastic will melt down to form a paste. The more thinner you added, the more liquid the paste will be. You have to experiment.

Use this paste to fill gaps, scratches, … It will harden in a few hours – a day. You can then sand, polish, …

2024.04.13 MMM Fan Rob Stone Posted

It appears that my friend’s Uni-Tred case is glued together at the seams. Any suggestions for getting the clamshell open without damaging the case? Hairdryer to heat glue while applying pressure? Razor knife? I need to get inside to repair grinding gearing. Was the case glued at Mattel??

Posted Replies:

• Scribe against the glue line over and over with the tip of an Xacto until you get through - safest method.
• Cut it with a hobby saw. The cut width will be less than a 1/16th of an inch.
• I've used a hot knife that's made for plastic then sanded down after regluing

I’m really wanting to figure out how to weaken the glue and not cut through any red tabs or angled folds/overlaps of the red plastic.

• any kind of solvent that can weakin the glue will melt the plastic. Cutting through tabs and folds will do nothing to weaken nor change the esthetics. The seam is already there to be seen. A medium CA will be the best to restore the two halfs. You will see once you get it done all the worrys will be for nothing...


2024.05.06 MMM Fan Rob Stone Added

Has anyone successfully cut open a Unitred, cleaned it up, replaced any broken parts, lubed it, and put it back together and it ran fine???

2024.06.04 MMM Fan Rob Stone Added

Cleaned ends of Unitred motor and lubed it. Here is before and after video (hosted on Facebook).

2024.05.08 MMM Fan Rob Stone Added

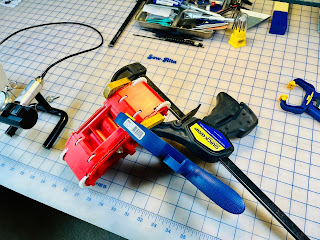

I have to be careful gluing the case back together on my friend’s Major Matt Mason Unitred. I can’t allow the glue to seep through the seams and get on the internal workings. I also have to ensure that the case is clamped in the proper position so as to not bind the gears.

Also a video (hosted on Facebook)
